For more data on wheat acreage, yield, and production visit: USDA NASS Agricultural Graphics: Field Crops

Remote Sensing: Wheat

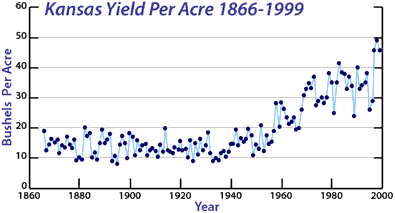

The figure below depicts Kansas wheat yield from 1866 until 1999. This graph displays the number of bushels of wheat produced per acre. Kansas wheat yield was fairly stable from 1866 until about 1945. In 1945, it began to rise dramatically. What may have led to such an overall increase? What may have
caused the yearly ups and downs in wheat yield?  Diagram courtesy Kansas State University
.

Image of a graph that displays Kansas wheat yield from 1866 until 1999.  Please have someone assist you with this.

In addition to directly counting the bushels of wheat produced, scientists can get a qualitative idea of crop yield based on satellite images. The United States Department of Agriculture's National Agricultural Statistics Service (USDA NASS) Agricultural Graphics: Spatial Analysis Research Section has been providing scientists and the public with bi-weekly images of the "greenness" of the United States since 1995. The greenness shows where there is vegetation. This includes crops as well as grasses and trees. Satellite images of this type are useful to scientists at the USDA. The images allow scientists to monitor the vegetation in crop areas. A decrease in the amount of greenness in a crop area may suggest a decrease in the amount of crop present. By examining these maps from the beginning of the crop growing season to the end, scientists can monitor the growth of crops. Scientists can also compare greenness images to the occurrence of events such as droughts, early frosts, and floods. By doing so, scientists may be able to determine the effects of these events on crop yield.

Many scientists have been conducting research to predict the effects of global climate change on crop yield. Climate change may result from increased concentrations of carbon dioxide (CO2) in the air. Increased atmospheric concentrations of CO2 may cause changes in environmental factors such as temperature and precipitation.

Image of a graph that displays the comparison of global average temperature for each crop increase to the percentage of change in crop yield.  Please have someone assist you with this.The Global Change Research Information Office posted a paper on the Potential Impacts of Climate Change on Agriculture and Food Supply . The authors of this paper examined computer models of crop yield. The models simulated the possible effects of changes in environmental variables on crop yield. The figure to the right displays the PREDICTED effects of increased average global surface temperature and increased carbon dioxide (CO2) on the wheat crop yield. The black dots represent the effects of temperature increases on crop yield without the effects of increased CO2. As temperature alone increases, crop yield dramatically decreases.  The red dots represent the effects of the same temperature increases in the presence of increased CO2.  The negative effects of increased temperature are not as great when increased CO2 is available to the crops. In fact, crops grown under a temperature increase of 2 degrees Celsius may actually INCREASE in yield in the presence of increased CO2Data courtesy of the NASA Goddard Institute for Space Studies.

In addition to models, scientists have used field experiments to determine the possible effects of predicted environmental changes on crop yield. This means they have actually grown crops under the current and predicted environmental conditions. The results of these experiments show scientists the actual effects of environmental changes on crop yield.

Image of a graph that displays the effects of water stress (not enough water) and increased concentrations of CO2 on wheat yield.  Please have someone assist you with this.During one such experiment, scientists examined the effects of water stress (not enough water) and increased concentrations of CO2 on wheat yield. The scientists grew wheat in well-watered ("wet") and poorly-watered ("dry") conditions. They exposed these two groups of wheat to different concentrations of CO2. Part of each group received current levels of CO2--370 ppm. The remainder of each group received CO2 at an elevated concentration--550 ppm. This experiment was conducted during two growing seasons, 1992-93 and 1993-94. The results are displayed in the above figure.

During the experiment, poorly-watered ("Dry") wheat produced less yield than well-watered ("Wet") wheat. Increased levels of CO2 resulted in increases in yield for both poorly-watered and well-watered wheat crops. The plants in the poorly-watered group seemed to benefit most from the increase in CO2. These plants displayed a greater amount of yield increase as a result of increased CO2 than the plants in the well-watered group did. These results were observed during two growing seasons, 1992-93 (left) and 1993-94 (right). The overall conclusions from this experiment are that a lack of water can result in a decrease in wheat yield, while an increase in atmospheric CO2 can result in an increase in wheat yield even in dry conditions.
